Kamis, 03 Desember 2020

dimana sya mencari artikel yg diminati?

 jikalau dulu sya sering ke perpustakaan kampus, membaca beberapa buku dengan judul yg hampir sama maka hanya akan ada beberapa bagian saja perbedaan antar buku tersebut yg lebih spesifik. sebagai contoh buku dgn materi struktur beton bertulang, jarang yg membahas metode desain flat slab, beam column joint, pilecap foundation. sya perlu memasuki ruangan khusus di sudut perpusatkaan kampus sya tersebut untuk mencari artikel yg sedang sya minati untuk cari tahu, jika beruntung sya mendapatkannya namun juga sering tidak ditemukan karena journal tersebut cukup banyak tersusun dalam rak. bisanya yg sya baca2 adalah jurnal paper Structural Engineering dari ASCE.

.



jika tidak ditemukan sya biasanya akan mencari koneksi internet berbayar saat itu di lantai dasar gedung, kala itu yg biasa saya akses adalah EJSE (Electronic Journal of Structural Engineering). terlihat lebih mudah dengan adanya daftar isi dan arahan kepada artikel yg dimaksud, namun masih terbatas sehingga sya masih perlu menggunakan mesin pencari di website lain, ya.. goooogling

.


The Journal EJSE will be indexed and abstracted electronically on a world-wide basis. The journal will be distributed only in electronic form. This means that several million people can have access to each electronically published paper simultaneously and literally real-time. The electronic media and the Internet enables us to publish papers in a very short time to a very wide audience, world-wide. The time spent on printing, shipping, distributing,  etc. can be saved.

.

artikel jurnal sebenarnya berbayar langganan tahunan, sebaiknya untuk yg mengejar profesi tingkatan jabatan akademis mengikutinya agar updates ilmu dan wawasannya. karena sya sifatnya pribadi dan hanya perorangan maka belum menempuh hal tersebut, begitupula dengan penulisan sya pribadi tidak ada arah menulis resmi dan submit ke penerbit. namun lebih suka menulis lewat weblogs secara bebas dan acak, fungsinya lebih cenderung sebagai catatan sendiri saja yg singkat. sya bekerja di swasta dan non-akademis jadi memang tidak ada hubungan dengan jenjang karir akademis beserta akreditasinya. tidak terlalu concern mengenai pengakuan dan indexing :) lagipula google juga sudah auto melakukannya.


perkembangan begitu pesat, saat ini banyak sekali penyedia artikel secara cuma-cuma dari pemilik asli yg dipublikasikan, ada yg sifatnya draft atau scan author copies. namun ada juga penyedia journal terbaru updates yg juga disediakan cuma-cuma menggunakan prinsip lisensi opendocument creative common. hal tersebut ada karena dukungan finansial dari tiap-tiap institusi kampus dari penulisnya.


berikut daftar link dari website penyedia artikel jurnal tersebut,

.


ResearchGate

ResearchGate is the professional network for scientists and researchers. Over 19 million members from all over the world use it to share, discover, and discuss research. We're guided by our mission to connect the world of science and make research open to all.

.


Academia

Academia is a platform for sharing academic research. Academics have uploaded 22 million papers, and 123 million academics, professionals, and students read papers on Academia every month.

.

.


Hindawi

One of the world's largest fully open access journal publishers. We believe in openness, in scholarly publishing and research communication.

.


MDPI

A pioneer in scholarly open access publishing, MDPI has supported academic communities since 1996. Based in Basel, Switzerland, MDPI has the mission to foster open scientific exchange in all forms, across all disciplines. Our 289 diverse, peer-reviewed, open access journals are supported by more than 67,200 academic editors. We serve scholars from around the world to ensure the latest research is freely available and all content is distributed under a Creative Commons Attribution License (CC BY)

.

.


BENTHAM

BENTHAM Open publishes a number of peer-reviewed, open access journals. These free-to-view online journals cover all major disciplines of science, medicine, technology and social sciences. BENTHAM Open provides researchers a platform to rapidly publish their research in a good-quality peer-reviewed journal. All peer-reviewed accepted submissions meeting high research and ethical standards are published with free access to all.

.


A Free, AI-powered Tool for Navigating the Scientific Literature

We are a team of researchers and engineers at the Allen Institute for AI building a smarter way to search and discover scientific knowledge.

.

.


Elsevier

Open access publication fee. A fee is payable by the author, or their institution or funder to cover the publication costs

.

.


IJRTE

It is academic, online, open access, double blind, peer reviewed international journal. It aims to publish original, theoretical and practical advances in Computer Science & Engineering, Information Technology, Electrical and Electronics Engineering, Electronics and Telecommunication, Mechanical Engineering, Civil Engineering, Textile Engineering and all interdisciplinary streams of Engineering Sciences.

.

.


IOP

IOP Publishing provides a range of options to enable authors to publish their work on an open access basis, with all of our journals ensuring the same high-standard of peer review and publication.

Many institutions and research funders have stated policies on open access and we advise authors check these before submitting an article

.


Taylor & Francis

Open access makes published academic research freely and permanently available so anyone, anywhere can read and build upon this research. At Taylor & Francis we champion researcher choice with a variety of open access publishing options to meet the unique needs of each author.

.


SciELO

The objective of the site is to implement an electronic virtual library, providing full access to a collection of serial titles, a collection of issues from individual serial titles, as well as to the full text of articles.

.


Hilaris SRL

All journals published under the flagship of Hilaris SRL are within the streams of basic and applied sciences, Engineering and technology, Business and Management. We encourage publication of manuscripts from all the major categories. The journals of Hilaris Publisher remain open access to all and hence the users are free to download the published materials without any financial hustles. Our open access journals are furnished subject wise to offer user friendly and easy navigation facilities for users in extracting the researcher information.

.

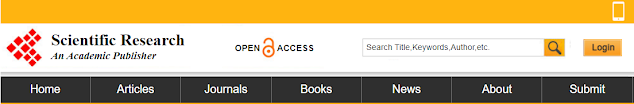

SCIRP

Scientific Research Publishing (SCIRP) is one of the largest Open Access journal publishers. It is currently publishing more than 200 open access, online, peer-reviewed journals covering a wide range of academic disciplines. SCIRP serves the worldwide academic communities and contributes to the progress and application of science with its publication.

.


SAP

Scientific & Academic Publishing (SAP) is an Open-Access publisher of journals covering a wide range of academic disciplines. SAP serves the world's research and scholarly communities, and aims to be one of the largest publishers for professional and scholarly societies. SAP's journals maintain the highest standards of peer review, with some internationally-recognized editors serving on the editorial boards of SAP's journals.

.


C.E.J

Civil Engineering Journal (C.E.J) is a multidisciplinary, an open-access, internationally double-blind peer -reviewed journal concerned with all aspects of civil engineering.

.


LAJSS

LAJSS is an OPEN ACCESS journal and all its contents can be freely accessed at no charge. No login is necessary. All submitted articles to LAJSS are first checked against plagiarism using ITHENTICATE software. All papers are peer reviewed by experts invited by the Editors.

.


JVE

JVE International is the Publisher of International Research Journals and the Organizer of International Conferences.

The flagship of JVE International is Journal of Vibroengineering (JVE), ISSN 1392-8716 – a prestigious International research journal specializing in theoretical and practical aspects of Vibration Engineering.

.


frontiers

This new section aims to bridge the gap between numerical methods and computational mechanics in the broader field of structural engineering. Over the last few decades, tremendous progress has been made in the field of structural engineering, leading to the construction of systems of increasing complexity. At the same time, as our structural engineering needs have grown our aspirations continue to largely exceed our capabilities.

.


Science Alert

A leading web based portal providing free access to a large database of peer reviewed scientific research. Currently Science Alert hosts more than 40,000 fully open access articles from 119 peer reviewed scientific journals. Science Alert is one of its kind technological solutions to make the authoritative content discoverable and broaden the value of your scholarly publications.

.



The International Journal of Advanced Steel Construction provides a platform for the publication and rapid dissemination of original and up-to-date research and technological developments in steel construction, design and analysis. Scope of research papers published in this journal includes but is not limited to theoretical and experimental research on elements, assemblages, systems, material, design philosophy and codification, standards, fabrication, projects of innovative nature and computer techniques. The journal is specifically tailored to channel the exchange of technological know-how between researchers and practitioners.

.

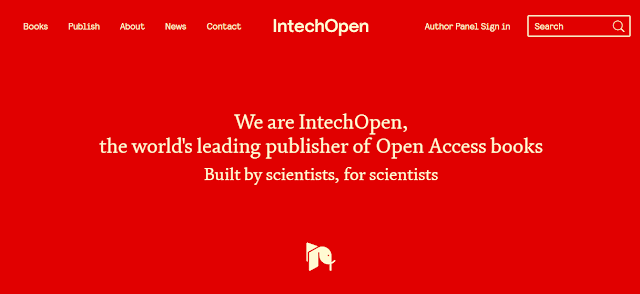

IntechOpen

We pride ourselves on our belief that scientific progress is generated by collaboration, that the playing field for scientific research should be leveled globally, and that research conducted in a democratic environment, with the use of innovative technologies, should be made available to anyone.

.

.



Internet Archive

A 501(c)(3) non-profit, is building a digital library of Internet sites and other cultural artifacts in digital form. Like a paper library, we provide free access to researchers, historians, scholars, the print disabled, and the general public. Our mission is to provide Universal Access to All Knowledge.

.

 *notes

dari dulu sya biasanya menggunakan costum commands pada search engine Google, misal berikut adalah mencari file artikel, report, atau lain-lain dalam format PDF pada website AISC dengan tujuan spesifik pada directory Continuing Education



saat ini index Google pada website tersebut menunjukkan hasil sekitar 30 halaman,

Selasa, 01 Desember 2020

besarnya radius tekukan penampang RHS

pada tabel profil baja untuk penampang pesegi berlubang (Rectangular Hollow Sections) atau Hollow Square Sections biasanya tidak ditampilkan nilai besaran dimensi radius tekukan sudutnya. hal ini dikarenakan perbedaan pada alat fabrikasi tiap produsen untuk membentuk tekukan tersebut pada proses dingin, tergantung dari ketebalan dan mutu pelat baja. merujuk pustakan dari Steel Tube Institute, nilai radius tekukan tersebut biasanya berikisar dua kali ketebalan pelat untuk mutu baja A500 (fy=42ksi s/d 46ksi atau ~290MPa s/d 320MPa).

.


(sumber: A.S.I, 2004)

.

sedangkan merujuk pada Australian Steel Institute (gambar diatas) besarnya 2 s/d 2.5 kali tebal pelat. sedangkan merujuk peraturan EuroCode besarnya nilai radius dalam tekukan bervariasi 1 s/d 5 kali tebal pelat, semakin tebal maka nilai radius tekaukan juga akan semakin membesar.

.


(sumber : A.I.S.C, 2013)

.


Sabtu, 31 Oktober 2020

pendekatan awal parameter material FE beton

pada tahap awal analisa beton bertulang dengan program FE perlu mementukan beberapa parameter material Mohr-Colomb atau Drucker Prager. untuk jenis material Modified Mohr-Coulomb (MMC) parameter tersebut adalah :

  • Elastic modulus, E (MPa)
  • Poison ratio, 𝝂 (n.d)
  • Cohesion, c (MPa)
  • Dilation angle, 𝛙 (deg)
  • Friction angle, 𝛟 (deg)

nilai tersebut perlu ditentukan hubungannya dengan kuat tekan (compressive strength) yg digunakan, berikut hubungan antar parameter tersebut dari berbagai rujukan,

.





.

grafik diatas dibuat berdasarkan rujukan dari Chen (1982) dan lainnya,

 .




.


.


.

mengenai nilai Poison ratio untuk beton berkisar 0.15 s/d 0.25 () diketahui semakin rendah mutu beton menunjukkan semakin tinggi nilai perbandingan tersebut. sedangkan besarnya nilai Dilation angle berkisar 31deg s/d 42deg (Lee and Fenves (1988), Wu et al. (2006) and Voyiadjis et al. (2009)) atau dapat diambil sebesar 30deg (Lubliner et al,1989) diketahui semakin tinggi mutu beton menunjukkan semakin tinggi nilainya. walau tidak terlalu berpengaruh besar secara langung, namun kedua nilai parameter tersebut mempengaruhi pola kegagalam penampang (retak) dan besarnya kapasitas ultimit penampang yg ditinjau dan perlu dilakukan peninjauan sensitifitas pengaruhnya.

.

.

dari berbagai rujukan tersebut sya menyederhanakan untuk pendekatan awal sbb,

  • Cohesi, c (MPa) diambil sebesar 20% dari kuat tekan beton
  • Dilation  angle,  𝛙 (deg) diambil sama dengan 36 derajat
  • Friction  angle,  𝛟  (deg) diambil sebesar satu setengah dari angka kuat tekan (n.d)

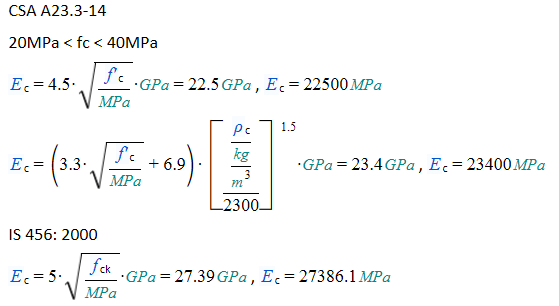

  • Elastic modulus, E (MPa) diambil dari rumus pendekatan peraturan beton
  • Poison ratio, 𝝂 (n.d)  diambil sebesar 0.2

.



.


.

untuk jenis tension cut-off dengan penghalusan bentuk hiperbolik (Abbo & Sloan, 1995) faktor tersebut perlu dipilih dan ditentukan sendiri. Mengenai transisi sudut (Transition Angle) nilainya diantara 0deg sampai 30deg, untuk stabilitas numerik direkomendasikan sebesar 25deg

.


.



.

diatas hanya pendekatan kasar saja untuk beton normal dengan mutu yg umum digunakan. parameter sesungguhnya tidak sesederhan diatas, jauh lebih rumit karena perlu melakukan kalibrasi dengan hasil uji laboratorium.

.


(sumber: HKS Abaqus, 2003)

.

untuk penggunaan jenis material Drucker Prager w/o Cap model, besarnya nilai parameter diturunkan dari Mohr-Colomb dengan kesetaraan,

.



.


.
untuk material dengan kerusakan (damage) yg paling sederhana adalah dari Marigo (1981)  dengan mengasumsikan kondisi tegangan tekan masih elastik linear dan material isotropik, namun kondisi tarik akan mengalami retak dan kehilangan kekakuannya pada tahap analisa.
.

.


.
sedangkan untuk parameter beton dengan model kerusakan (damage materials) dari Mazars (1984), untuk akurasi perlu dilakukan adjusted parameters dan kalibrasi hasil uji labs (seperti ditunjukan plot grafik dari berbagai sumber) dengan batasan nilai sebagai berikut,
.

semua parameter tersebut mempunyai keterkaitan anatara satu dengan lainnya dalam mewakilkan bentuk kurva tegangan beton pada daerah tarik dan tekan. hal mana yg perlu diketahui awal adalah parameter modulus elastis beton (E, MPa) nilainya dapat didekati dari kuat tekan beton (f'_c, MPa). batas ambang regangan tarik eps_d0 ( atau regangan retak tarik, eps_t mm/mm) juga dapat didekati hubungannya dengan kuat tarik beton (f_t, MPa) atau uji tekan cone/brazilian untuk lebih akurat. saat kurva sudah sesuai mendekati uji sample sederhana silinder tekan, nilai parameter tersebut kemudian dapat digunakan untuk diterapkan pada model aktual yg kompleks dengan opsional tambahan parameter 'beta' atau 'k' tinjauan pengaruh geser.

dari alur tersebut diatas, untuk pendekatan awal kasar sudah dapat ditentukan parameter masukan material model Mazars tsb dengan nilai awal yg diketahui adalah kuat tekan beton (f'_c, MPa), bentuk kurva tegangan-regangan beton bersifat asumsi seperti pada umumnya yg sudah diketahui.

.


.



.
(source :  Code_Aster, 2013)


.

.

.


.
(source: Code_Aster forums, nirmaljoshi, 2023)
.

.

.
pilihan lain untuk beton dengan kerusakan (damage) ada dari Fichant-La Borderie (2017) seperti plot dibawah pada kondisi beban uniaksial, namun perlu diperhatikan parameter data masukan atau faktor dipengaruhi fracture energy dan mesh size yg digunakan pada model sesungguhnya. Nilai 'a' merupakan kecepatan rambat retak yg nilainya berkisar 1000.
.

.


.
untuk kepemilkan secara umum seperti modulus elastisitas, nilai poisson, kuat tarik dll dapat merujuk pada pustaka Shah & Ahmad (1985) dari Jurnal PCI yg mana cukup lengkap dengan disediakan hasil uji beton mutu sedang dan tinggi.

.

.

.

.

.

(source: Subramanian, 2021)
.

.
.
